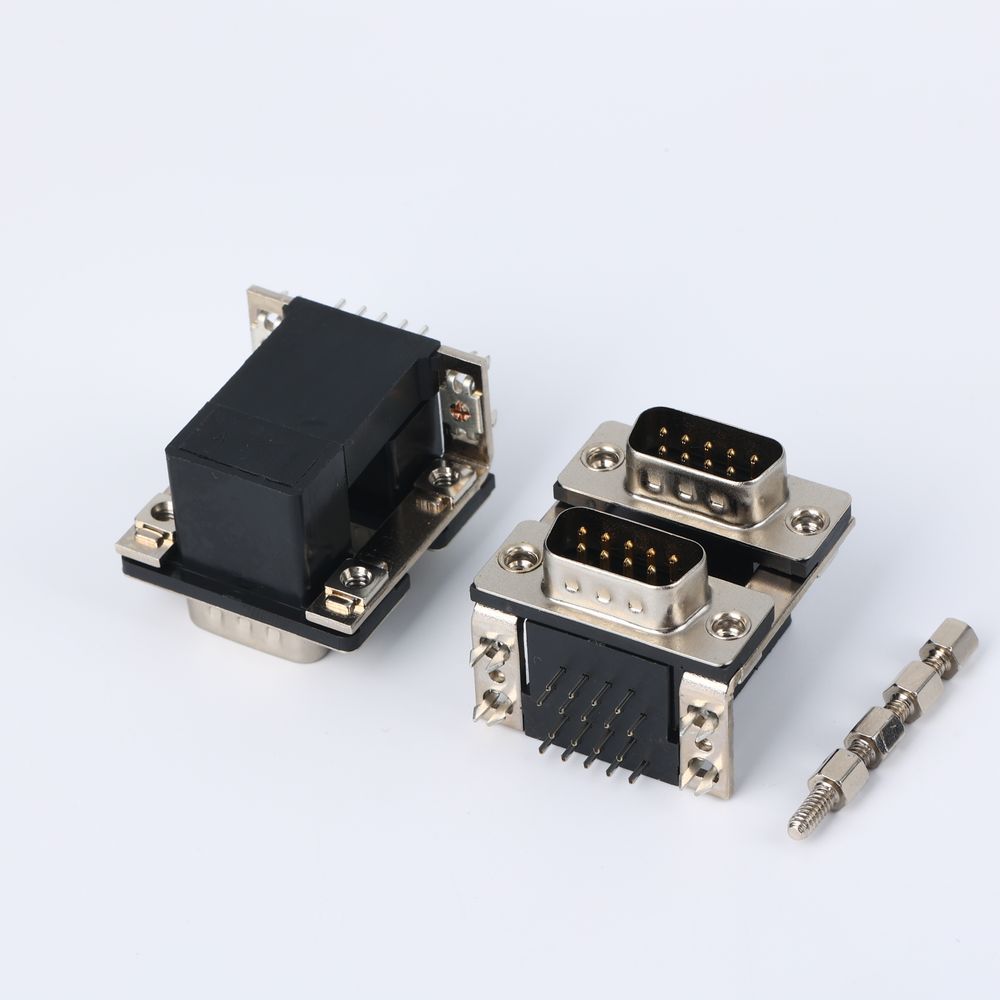

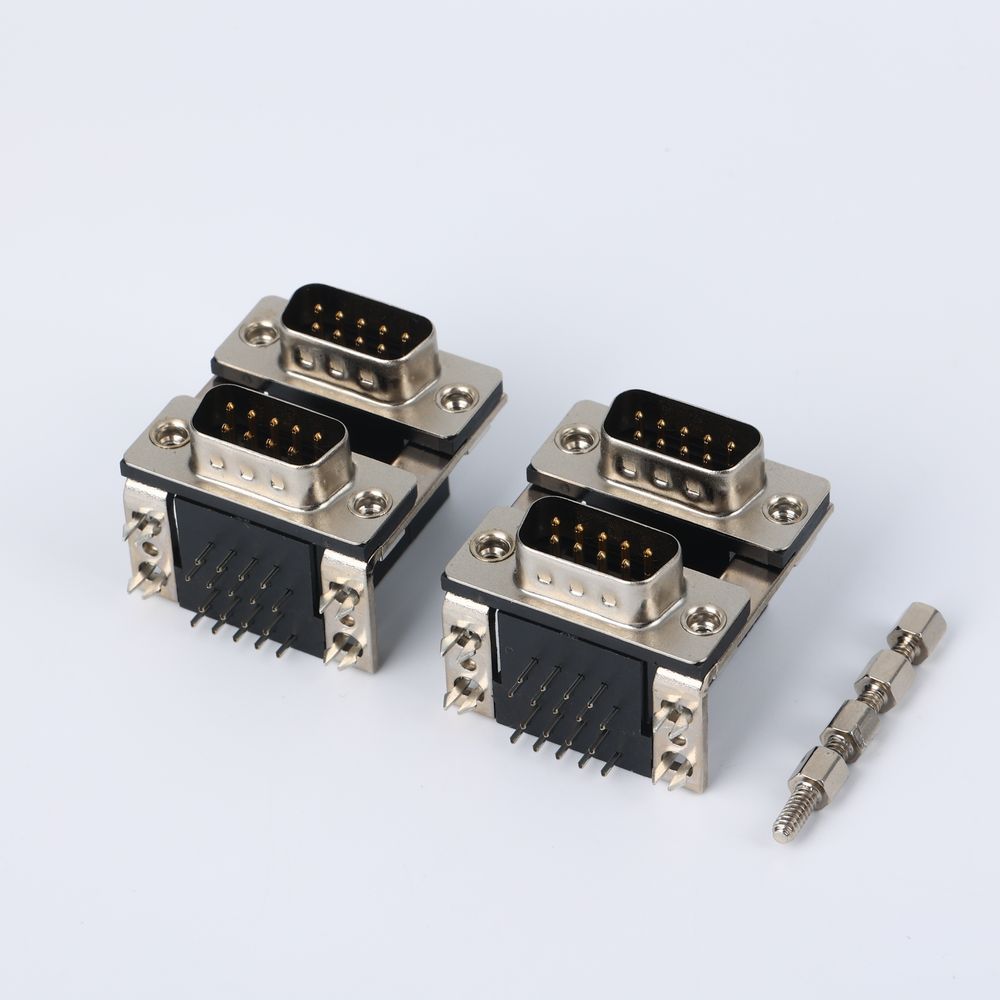

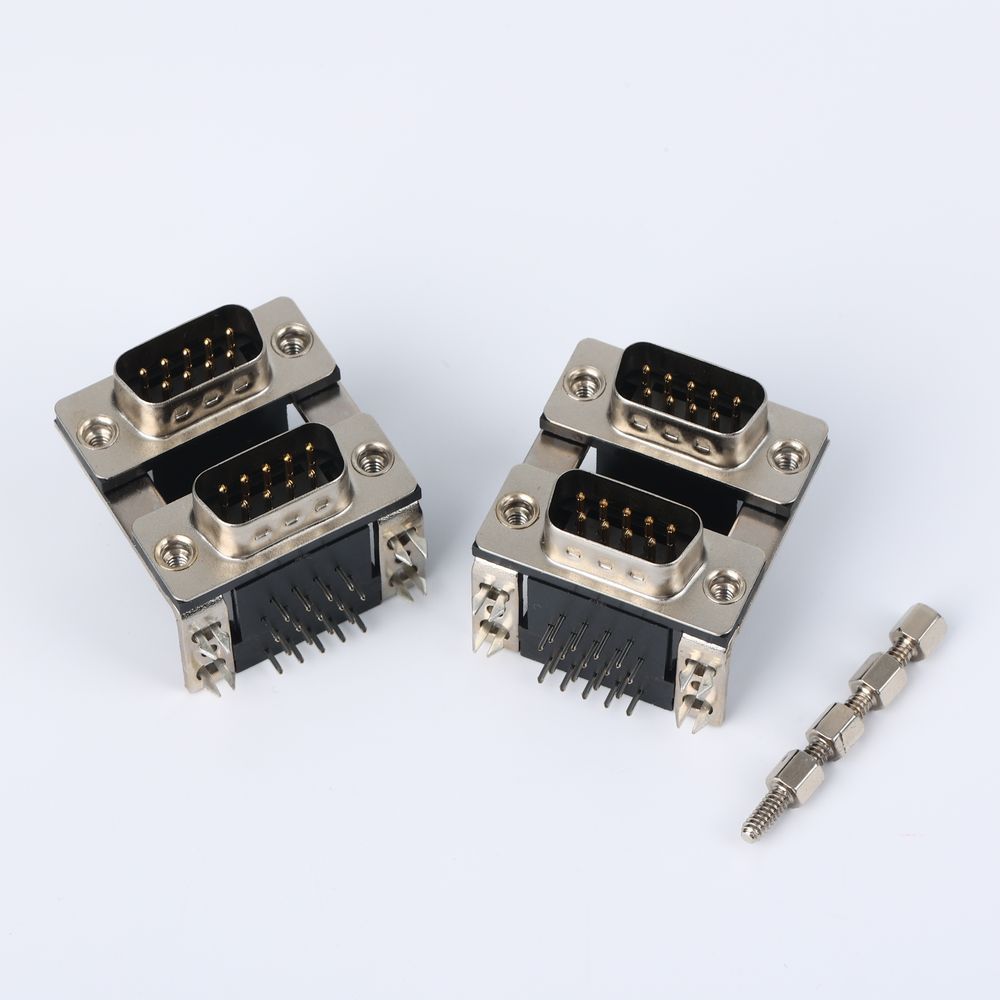

Модель: AA20+9191-4208L5 D-SUB 9 Pin Double 19.05 RoHS
марка: Ифэн
Origin: Китай
| Скачать | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MATERIAL: | |
| HOUSING : | PBT+G.F30%,UL94V-0,BLACK |
| CONTACT: | COPPER ALOY |
| SHELL: | SPCC |
| FINSH: | |
| SHELL: | NICKEL PLATED 30u Min. |
| CONTACT: | GOLD PLATED IN CONTACT AREA0.6u Min,TIN PLATED IN SOLDER AREA80u Min.and 30u Min NICKEL UNDER PLATED |
| ALL OVER. | ALL OVER. |
| BOARD LOCK: | MATTE TIN PLATED 80u'Min. |
| SQUARE RIVET: | NICKEL PLATED 30u Min. |
| SHELL BRACKET: | NICKEL PLATED 30u Min. |
| ELECTRICAL CHARACTERISTICS: | |
| RATED CURRENT: | 3 AMP MAX |
| RATED VOLTAGE: | 30V DC |
| INSULATION RESISTANCE: | 1000M OHMS MIN.AT 500V |
| CONTACT RESISTANCE: | 30m OHMS MAX. |
| DIELECTRIC WITHSTANDING VOLTAGE: | 1000V AC FOR |
| ONE MINUT | ONE MINUTE |
| OPERATING TEMPERATURE: | -45°CT0+85°C |
